Nano Aluminum Composite Panel

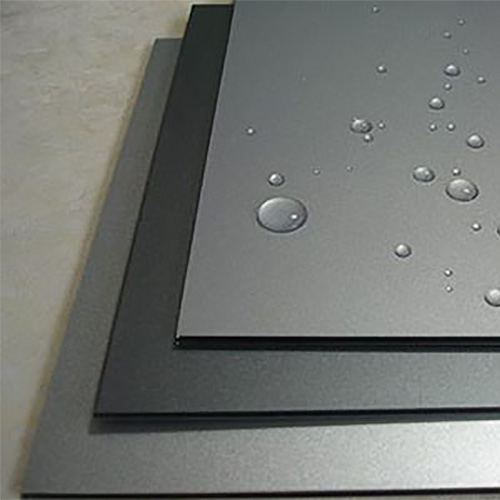

YUNZHI is a leading China Nano Aluminum Composite Panel manufacturers. SHANDONG YUNZHI Nano Aluminum Composite Panel is anti-graffiti and self cleaning. It is composed of a polyethylene core sandwiched between two 0.5mm aluminum skins. Coming with hydrophobic and lipophobic surface, the Nano-PVDF ACP features good water and dirt resistance. The protected object stays clean much longer and can be easily cleaned with pure water.

Send Inquiry

Product Description

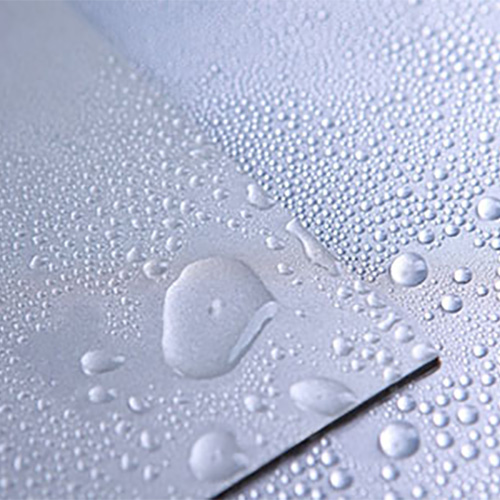

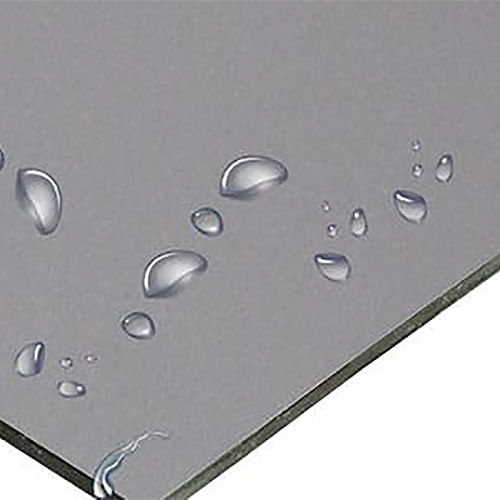

YUNZHI is Nano Aluminum Composite Panel manufacturers and suppliers in China who can wholesale Nano Aluminum Composite Panel. The LOTUS EFFECT is the most distinguished characteristic of Nano-PVDF aluminium composite panel. The lotus leaf is never polluted by dirt although coming from silt. The same as lotus leaves,ACP has high water resistance and any dirt on its surface can be easily cleaned away by a heavy rain.

Nano Aluminum Composite Panel Specifications

1) Aluminum skin thickness: 0.12mm-0.50mm.

2) Total panel thickness: 2mm-6mm

3) Width: 1000mm,1220mm (regular), 1250mm,1300mm,1500mm,1550mm, 1575mm,2000mm(maximum);

4) Length: Up to 6500mm;

5) Standard size: 1220mm(Width) ×2440mm(Length).

6) Surface Treatment: PVDF coating and PE coating.

7) Main aluminum composite wall panel Product: PE coated ACP,PVDF coated ACP,Nano PVDF coated ACP,Mirror finish ACP,Brushed ACP,Wooden ACP,Granite ACP and Fireproof core ACP.

8) Note: Non-standard sizes and special colors can be customized.

Why choose Nano Aluminum Composite Panel?

- Excellent easy-cleaning.

- Pollution Resistance

- Oil resistance

- Good Friction Resistance

- Strong Acid & Alkali Resistance

- Outstanding weather resistance

Advantages and applications

Due to above characteristics, the Nano Aluminum Composite Panel is ideal for wall decoration and protection for office buildings, shopping centers, industrial buildings, airports, hotels, bus centers, hospitals, schools, supermarkets, and residential buildings, to name a few.


A. Building exterior curtain walls

B. Decoration and renovation additions for old buildings

C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

D. Shop door decorations

E. Advertisement board display platforms and signboards

F. Wallboard and ceilings for tunnels

Property comparison between Nano-PVDF coating and PVDF coating

Coating Type

NANO Coating

PVDF Coating

Paint Particle



Pollution Resistance

Dust hardly sticks on the panel

Dust sticks easily


Dust goes away with bead


Friction Resistance

Over 10,000 times

Several thousands times

Acid Resistance

5% HCI, 240 hrs

24 hrs

Alkali Resistance

5% NaOH, 240 hrs

24 hrs

Oil Resistance

20# machine oil, 240 hrs

24 hrs


Both paints have prominent feature of weather proofing and color retention.

The paint layer comparison of PVDF ACP and Nano-PVDF ACP under atom microscope.

The final result shows that the surface paint structure of Nano-PVDF aluminium composite panel is denser than that of PVDF panels. So, the former keeps better pollution resistance.

From the above comparisons, we know that Nano-PVDF aluminum composite panel is a better alternative to PVDF panel.

As a top ranked aluminium composite panel manufacturer and supplier in China, Yunzhi company can also produce polyester ACP, fireproof ACP and wooden ACP, etc.

If you are looking for quality and affordable aluminum composite material manufacturers, Yunzhi is your best choice
